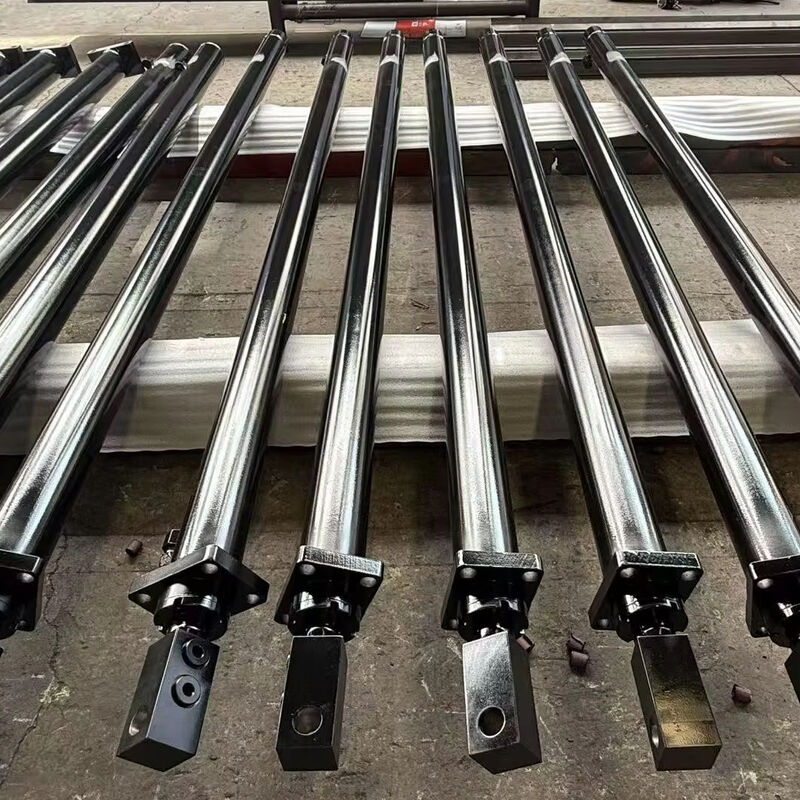

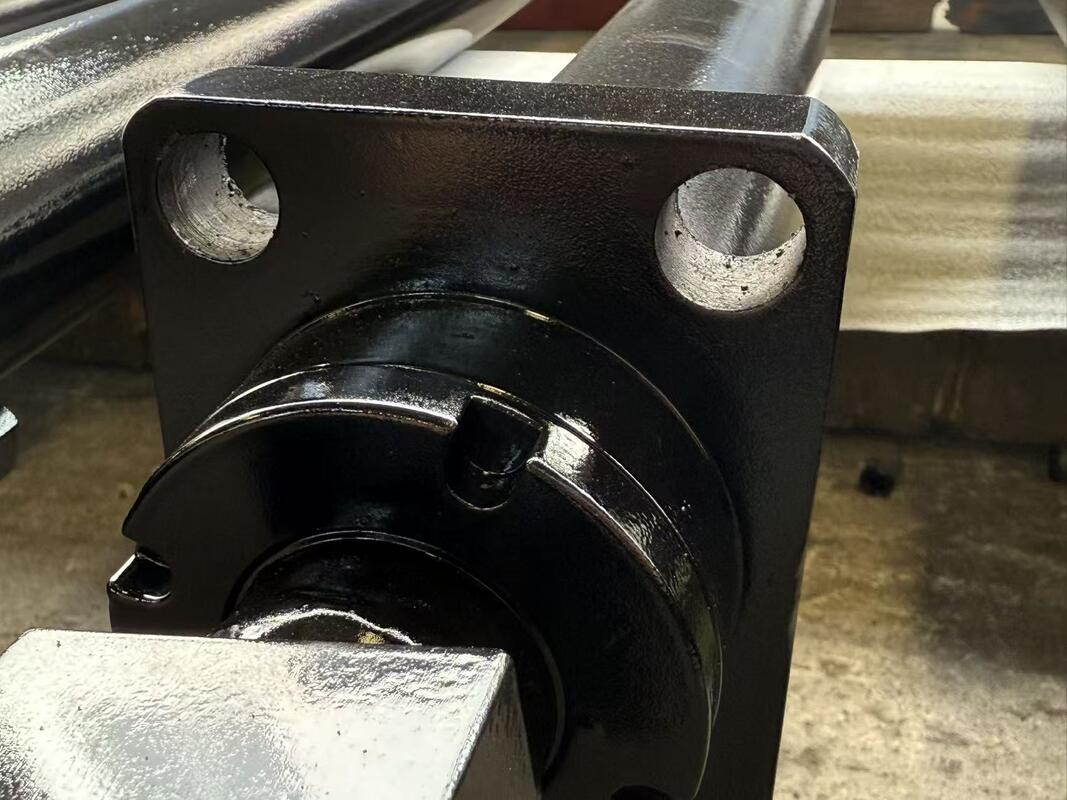

Agricultural Machinery Telescopic Steel Hydraulic Piston Cylinder Double Acting
Agricultural Machinery Telescopic Steel Hydraulic Piston Cylinder Double Acting
Basic Properties
Country Of Origin
China
Brand Name
Zhengfeng
Certificate
ISO
Trading Properties
MOQ
1 unit
Unit Price
$190-210 / unit
Payment Method
L/C, T/T, D/P, D/A
Product Summary
Customized Agricultural Machinery Telescopic Steel Hydraulic Piston Cylinder Double Acting Hard Chrome Plated Product Specifications & Manufacturing Capabilities Parameter Specification Range Parameter Specification Range Inner tube diameter 18~1200mm Stroke ≤15000mm Rod diameter 12~1000mm Acting ...
Product Details
Highlight:
Agricultural Machinery hydraulic piston cylinder
,85mm hydraulic piston cylinder
,50mm telescoping hydraulic ram
Inner Tube Diameter:
85
Maximum Stroke:
1660
Warranty:
1 Year
Material:
Steel
Outer Tube Diameter:
102
Overall Length:
1920
Rod Diameter:
50
Showroom Location:
Other
Surface Treatment Of Piston Rod:
Hard Chrome Plated
Type:
Telescopic Cylinder
Product Description
Customized Agricultural Machinery Telescopic Steel Hydraulic Piston Cylinder Double Acting Hard Chrome Plated
Product Specifications & Manufacturing Capabilities
| Parameter | Specification Range | Parameter | Specification Range |
|---|---|---|---|
| Inner tube diameter | 18~1200mm | Stroke | ≤15000mm |
| Rod diameter | 12~1000mm | Acting type | Single/Double |
| Material | Steel/Stainless Steel/Aluminum | Working pressure/Testing pressure | ≤50Mpa |
| Surface treatment | Electroplating | Package | Wooden Case |
| Shipment | By sea/Train/Air Freight | Warranty | 1 Year |
Key Features
Telescopic Design: Multi-stage extension capability for agricultural machinery applications
Double Acting: Hydraulic operation in both directions for enhanced functionality
Hard Chrome Plated: Superior corrosion resistance and extended service life
Custom Manufacturing: Tailored specifications to meet specific agricultural equipment requirements
High Pressure Rating: Capable of handling up to 50Mpa working pressure
Multiple Material Options: Available in steel, stainless steel, and aluminum variants
